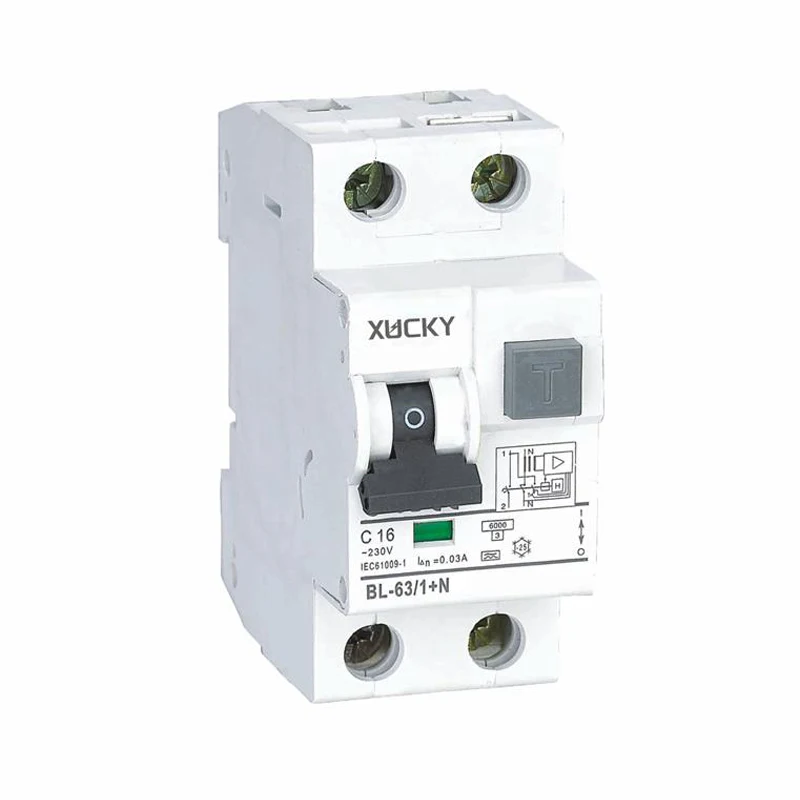

RCBO Circuit Breaker

XUCKY Electric is a large RCBO Circuit Breaker manufacturer and supplier in China. For many years, we have been specializing in Modular Electrical Terminal Equipment, our products have good price advantage and cover most of the European and American markets. We are looking forward to being your long-term partner in China.

Send Inquiry

Product Description

RCBO circuit breakers with overcurrent protection BL-40 are intended for electric shock hazard protection in case of electric installation insulation failures, for preventing fires caused by earth current leakages, overload and short circuit protection.

They are recommended for protecting group lines supplying outdoor installation receptacles, appliances and garage and basement lighting.

Advantages

· Combined circuit with an electronic module of differential protection and integrated circuit breaker of L7-63 series.

· The most subtle electric shock hazard protection in case of direct contact with conducting parts.

· Independent contact position indicator.

· Wide range of operating temperatures from –25 to +40° С.

· Notches on terminal clamps provide for lowering thermal losses and boosting the mechanical stability of connection.

· “TEST” button for checking the device’s operation and accuracy of connection.

· DABL dimensions correspond to 2-modular item at the expense of constructive elements placement.

· Boosted capability of 6 kA provides for installing AVDTs as incoming protection switches.

Design Features

	Combined circuit with an electronic module of differential protection, D-class varistor and integrated circuit breaker of DAB7-63 series ensures 4 types of protection: from residual current (leakage current), short circuit; overload and surge overvoltage.		Welding deposition of silver-bearing composite provides for boosting the contact block’s wear-resistance and lowering the transient one.
	Main circuit status indicator provides exact information on the contacts status independently from lever position.		Wide range of operating temperatures from –25 to +40° С contributes to applying this switch in different climatic zones.
	“TEST” button for checking the device’s operation and accuracy of connection.		Notches on terminal clamps allow lowering thermal losses and boosting the mechanical stability of connection.
	Boosted screw head dimension with cross-functional crest (+,–) helps to facilitate mounting and prevents the screws from falling out during the installation.
