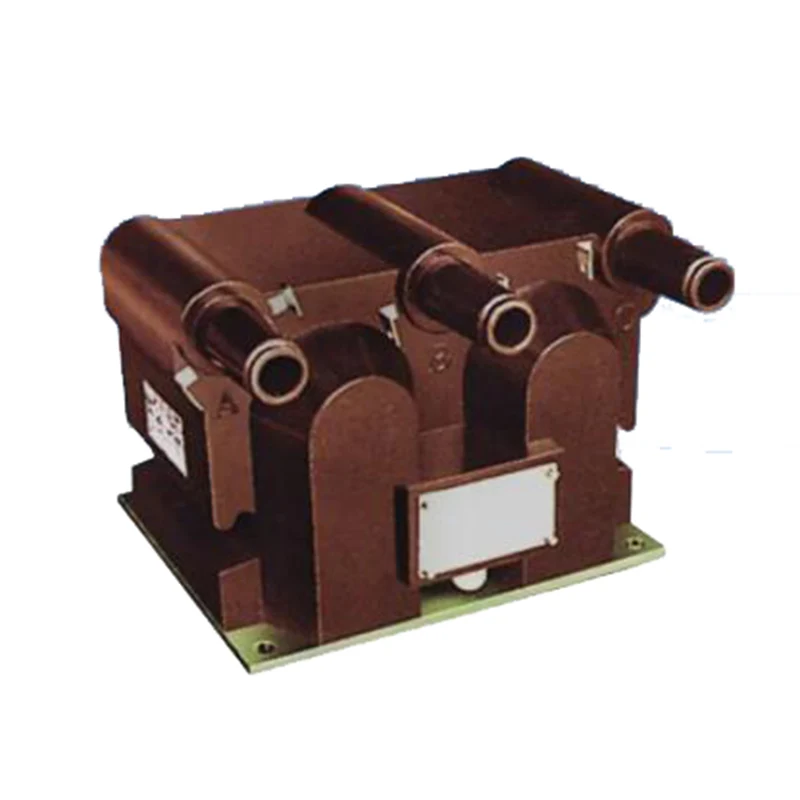

JSZV12A Type Voltage Transformer

Rated voltage ratio (V)

Accuracy class Three-phase rated secondary output

Max.output (VA)

Rated insulation level(kV)

Wiring diagram

3000/100

0.2—30x/3

3.6/23/40

Figure 1

6000/100

0.5—90x/3

600 xJ3

7.2/32/60

10000/100

1–250 x 73

12/42/75

3000/100/100

0.2/0.2–20 Xs/3/20 x 73

500 x/3 500×73

3.6/23/40

6000/100/100

0.2/0.5—20 x/3/20 x/3

7.2/32/60

10000/100/100

0.5/0.5—45 x #745 x

Figure 2

10000/100/220

0.2/3—30x^/3000.5/3—90X 厄7300

600×73/1000

12/42/75
