Overall panel design is luxury and attractive, the face covering colors are dark green and brawn (provided according to the color needs of the different interior residential designs except for the standard colors). The design of the face covering gives a noble and elegant feeling. lure Ivory, high Strength, never change color. Transparent material is PC. Fixed frame, simple structure, and easy installation.
TXM: series of distribution box
Numbers of circuit:4,6,8,12,15,18,24,36
M:means Open mounted
R:means Concealed mounted
A:the cover is transparent
I: iron base
▪ Rated current: 63 [A]
▪ Short-circuit making current: 10 (KA)
▪ Shell protection grade: IP40;
▪ Shell material: ABS polymeric carbon
▪ Color: White
▪ Face covering: Transparent
|

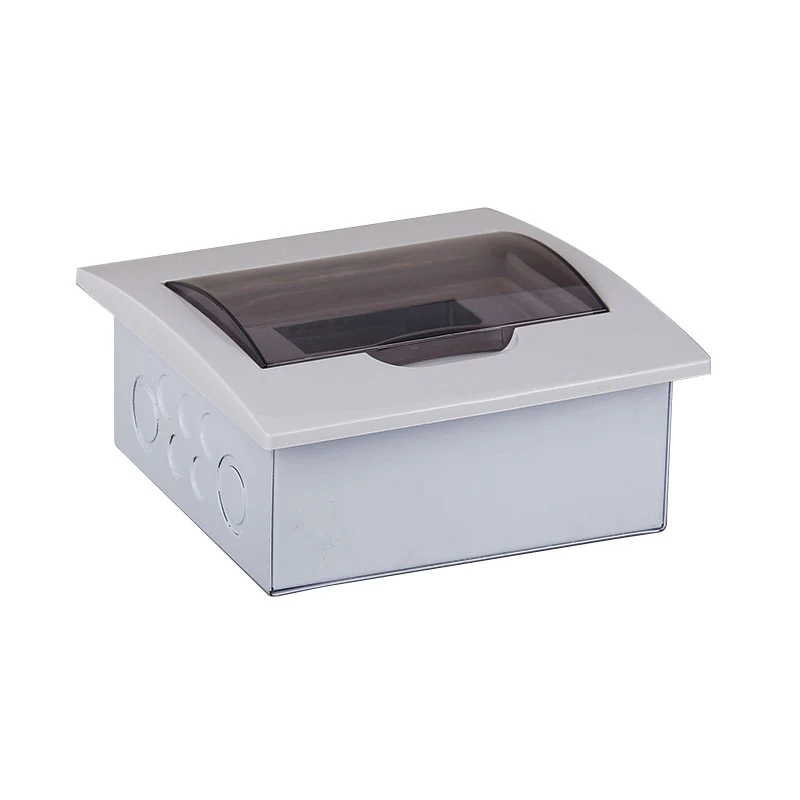

TXM distribution box(Iron base) |
Carton
L*W*H（cm) |
(PCS/CTN) |
|
|
4 way |
Embedded mounting Single copper bar
|
47*44*47.3 |
30 |
|
6 way |
54.3*46.8*47 |
30 |
|
|
8 way |
69.5*48*44.2 |
30 |
|
|
10 way |
47.5*46.5*51.8 |
20 |
|
|
12 way |
47.5*46.5*51.8 |
20 |
|
|
15 way |
45.5*35*70 |
15 |
|
|
18 way |
78.5*50.5*42 |
15 |
|
|
20 way |
|
|
|
|
24 way |
52*36*63.3 |
10 |
|
|
30 way |
|
|
|
|
36 way |
54*31.5*50.2 |
5 |
|
