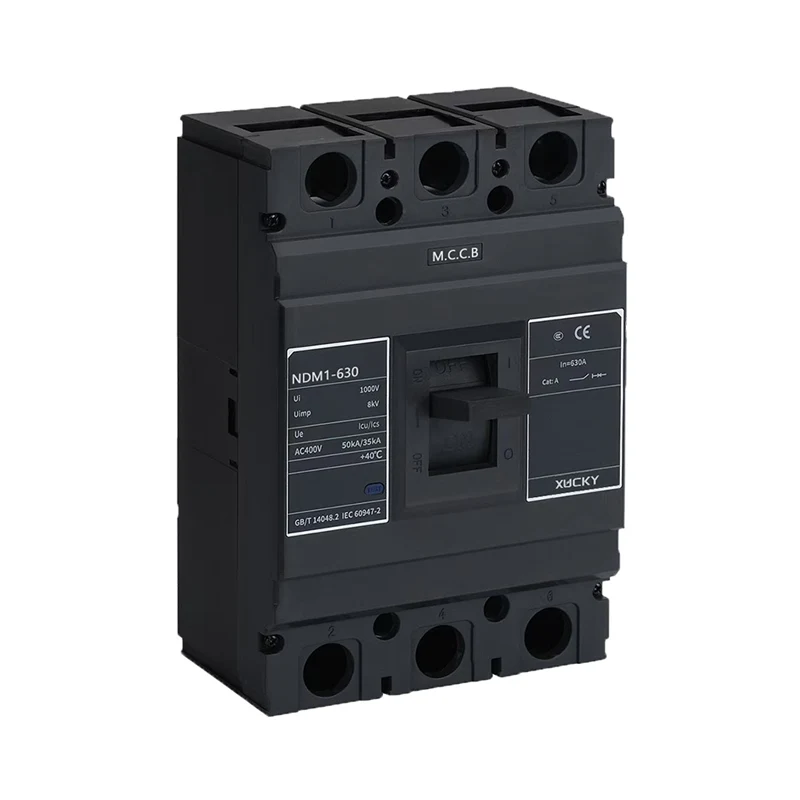

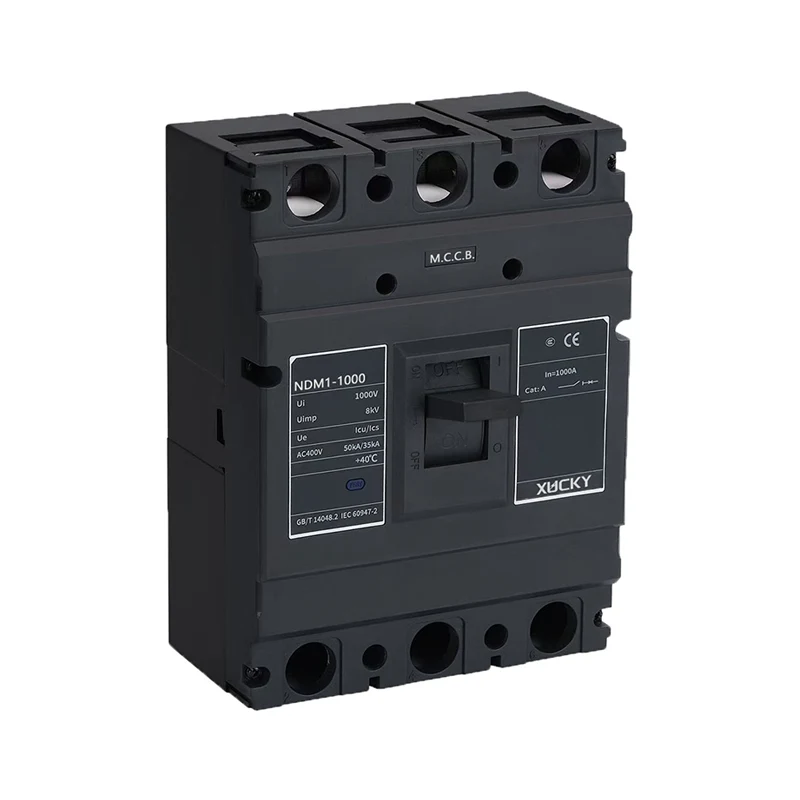

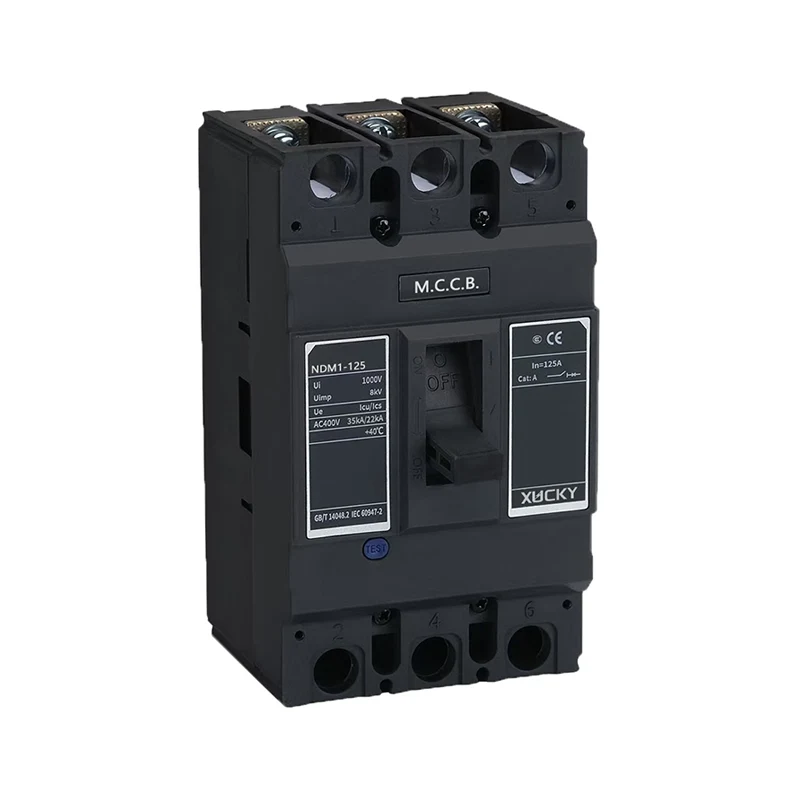

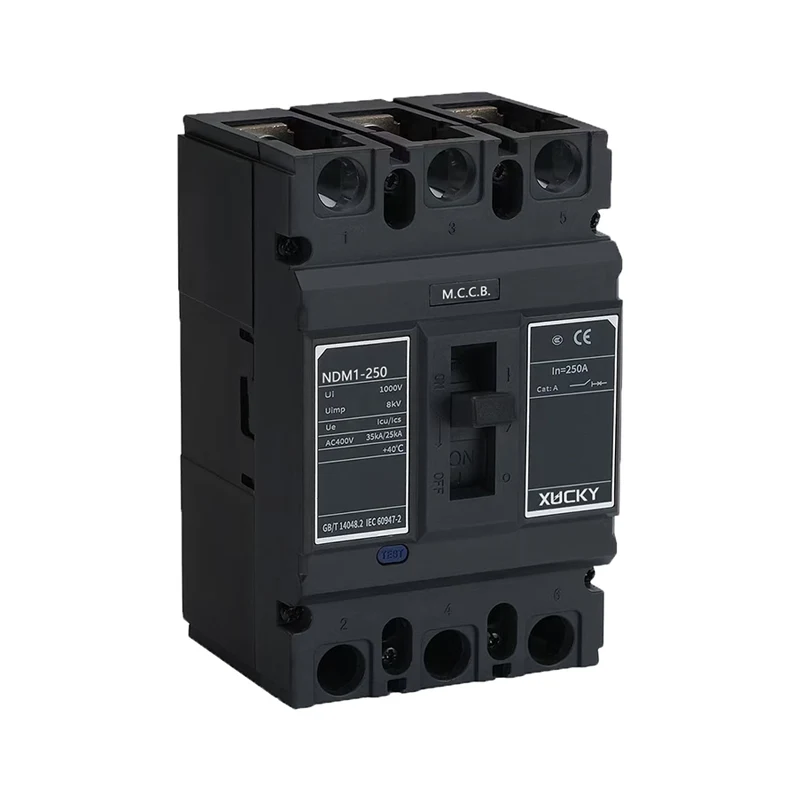

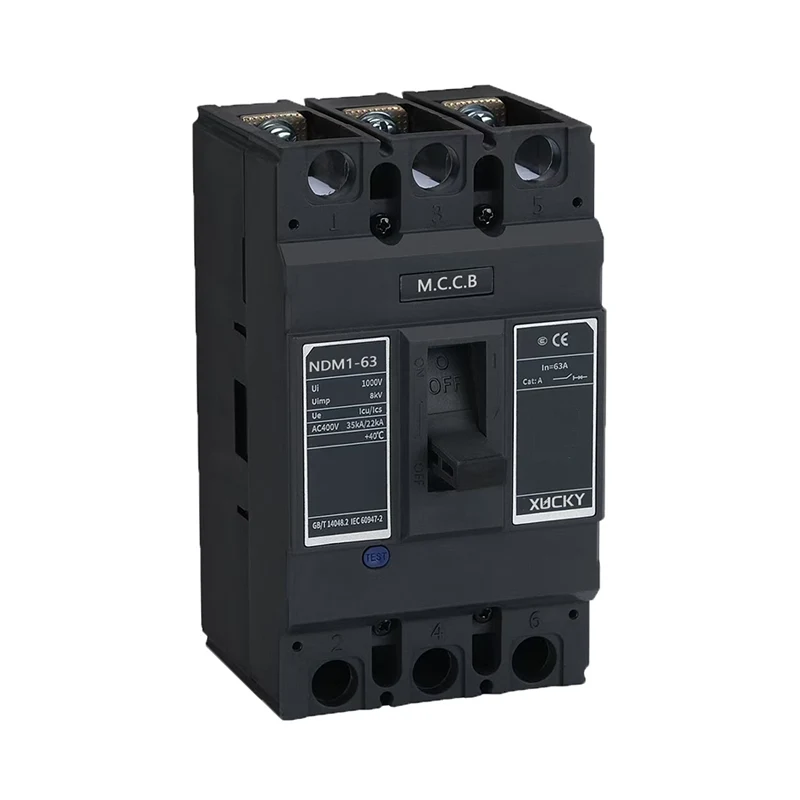

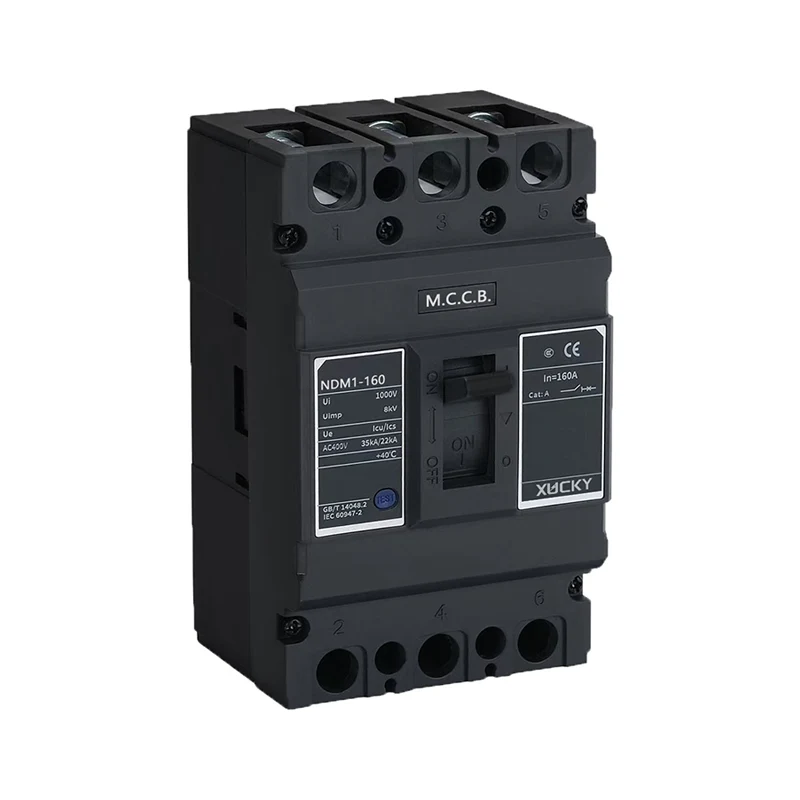

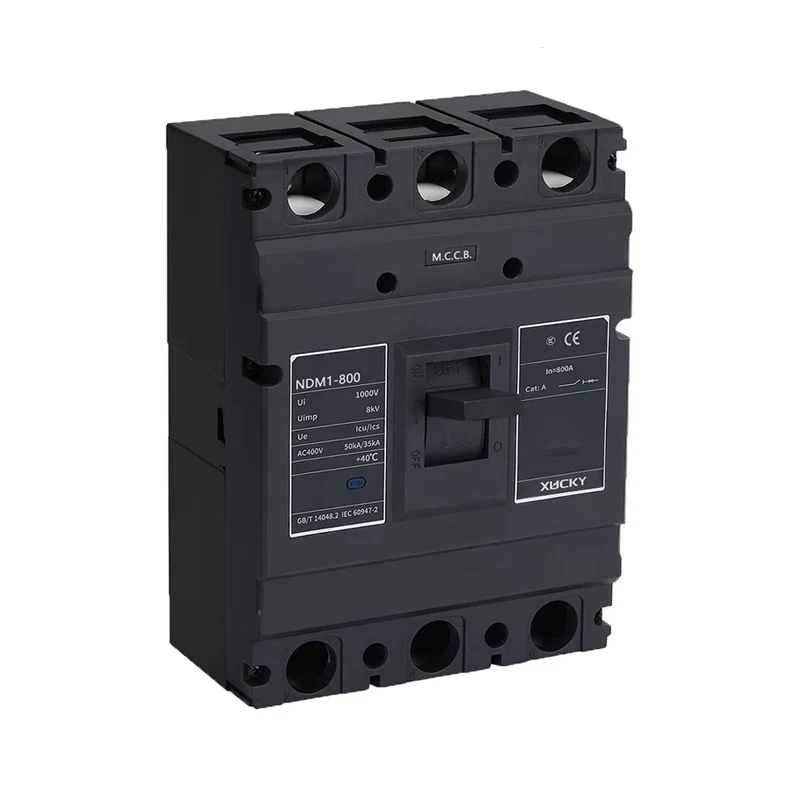

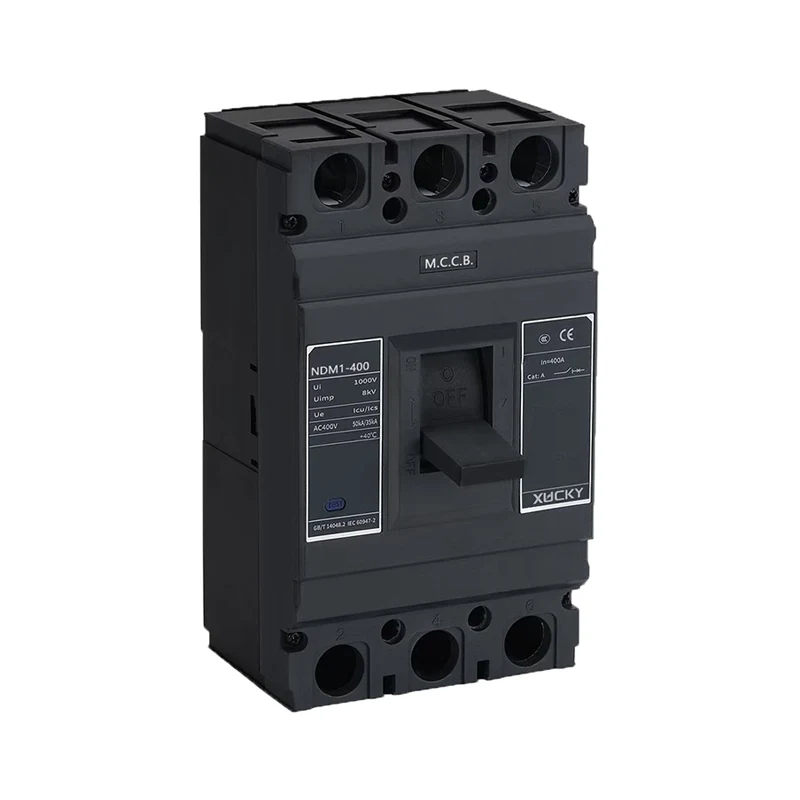

NDM1 Moulded Case Circuit Breaker

XUCKY NDM1 Moulded Case Circuit Breaker (NDM1, hereinafter referred to as MCCB), is new circuit breakers which have been designed and developed by the company using international advanced technology. The circuit breakers are of the following characteristics: compact size, high breaking capacity, short arc-over distance and shakeproof, is ideal products applied on land or ships. The rated insulation voltage of the circuit breaker is 800V (500V for NDM1-63), it is suitable for the distribution network of AC 50Hz / 60Hz, rated working voltage of 690V and rated current of 1250A, to distribute power and protect circuit and power equipment from being damaged caused by overload , short-circuit, under-voltage and other fault. Also for protection infrequent conversion of the circuits and infrequent start of motor and overload, short circuit, under voltage.


Scope of Application

XUCKY NDM1 Moulded Case Circuit Breaker (NDM1, hereinafter referred to as MCCB), is new circuit breakers which have been designed and developed by the company using international advanced technology. The circuit breakers are of the following characteristics: compact size, high breaking capacity, short arc-over distance and shakeproof, is ideal products applied on land or ships. The rated insulation voltage of the circuit breaker is 800V (500V for NDM1-63), it is suitable for the distribution network of AC 50Hz / 60Hz, rated working voltage of 690V and rated current of 1250A, to distribute power and protect circuit and power equipment from being damaged caused by overload , short-circuit, under-voltage and other fault. Also for protection infrequent conversion of the circuits and infrequent start of motor and overload, short circuit, under voltage. NDM1 circuit breaker can be mounted vertically (upright) or horizontally (transverse).

NDM1 MCCB is suitable for isolation and the symbol is " ".

NDM1 Moulded Case Circuit Breaker meets the standard: GB14048.2 "low-voltage switchgear and control equipment, Part 2: circuit breakers."


Model and meaning


Note:

According to the pole, it classifies four types:

Type A: N-pole without over-current release components, and N-pole has been connected all along, and does not act with other three poles to turn on or off;

B-type: N-pole without over-current release components, and N-pole could act with other three poles (N-pole turn-on prior to turn-off);

Type C: N-pole fixed with over-current release components, and N-pole could act with other three poles (N-pole turn-on prior to turn-off);

D-type: N-pole fixed with over-current release components, and N-pole has been connected all along, and does not act with other three poles to turn on or off.

Circuit breaker for distribution without code, circuit breaker for motor protection with 2

No code for direct operation with handle; P for electric operation; Z for turning handle.


Classification according to rated current of over-current release:

NDM1-63 MCCB has nine: 6,10,16,20,25,32,40,50,63 A;

NDM1-125 MCCB has eleven: 16,20,25,32,40,50,63,80,100,125 A;

NDM1-160 MCCB has nine: 32,40,50,63,80,100,125,160 A;

NDM1-250 MCCB has seven: 125,140,160,180,200,225,250 A;

NDM1-400 MCCB has five: 225,250,315,350,400 A;

NDM1-630 MCCB has three: 400,500,630 A;

NDM1-800 MCCB has three: 630,700,800A;

NDM1-1000 MCCB has two: 800,1000A.

Note: 6A only has electromagnetic (instantaneous) type, is not recommended specifications.


According to the wiring method: wiring in front of board, wiring on back of board, insertion type of the board.

According to over-current release pattern: thermodynamic-electromagnetic (double) type, electromagnetic (instantaneous) type.

According to the outfit, it has two types: with or without outfit.

The outfit include inner accessories and outside accessories: The inner accessories have shunt release, under-voltage release, auxiliary contact and alarm contact. The outside accessories are turning handle operation mechanism, power-driven operation mechanism and so on.

According to the breaking capacity: L-standard breaking type; M-second high breaking type; H-high breaking type


Normal operating conditions

■ Ambient air temperature: -5℃~+40℃, and average temperature in 24h is below +35℃.

■ Altitude: The altitude of the installation site is not more than 2000m.

■ Atmospheric conditions: The air relative humidity in the highest temperature +40℃ is not more than 50%; In the low temperature can have higher relative humidity. The maximum average relative humidity is 90%, while the average monthly minimum temperature is +25℃, and consider the temperature changes in product on the surface of the gel.

■ Pollution Degree: 3.


Main technical parameters


Main technical index

1, Instantaneous action characteristic setting value of the circuit breaker for distribution is 10In±20%, NDM1-1000 is 7In±20%; Instantaneous action characteristic set value of the circuit breaker for motor protection is 12In ± 20%.

2, The rated value of the circuit breaker in Table 2.

3, In the ambient temperature of +40℃, the circuit breaker for distribution over-current release action characteristics shown in Table 3, the circuit breaker for motor protection over-current release action characteristics shown in Table 4.


Characteristics of inverse time breaking action of circuit breakers over-current release for power distribution when every pole is power-on at the same time

No.

Test current

I/In

Set time

Initial state

1

Conventional non-tripping current

1.05

2h(In>63A),1h(In≤63A)

Cold

2

Conventional non-tripping current

1.30

2h(In>63A),1h(In≤63A)

Immediately after Test 1


Instantaneous action characteristic setting value of the circuit breaker for distribution is 10In±20%, and instantaneous action characteristic setting value of the circuit breaker for motor protection is 12In±20%.


Characteristics of inverse time breaking action of circuit breakers over-current release for motor protection when every pole is power-on at the same time

No.

I/In

Set time

Initial state

Remark

1

1.0

>2h

Cold



2

1.2

≤2h

Immediately after Test 1



3

1.5

≤4min

Cold

10≤n≤225

≤8min

225 < in ≤ 630

4

7.2

4s≤T≤10s

Cold

10≤In≤225

6s≤T≤20s

225 < in ≤ 630


Derating factors table of temperature changes

Model/Coefficient/Temperature

+40℃

+45℃

+50℃

+55℃

+60℃

NDM1-63

1

0.94

0.88

0.80

0.72

NDM1-100

1

0.95

0.89

0.84

0.76

NDM1-225

1

0.96

0.91

0.87

0.82

NDM1-400

1

0.94

0.84

0.80

0.73

NDM1-630

1

0.93

0.88

0.83

0.76

NDM1-800

1

0.93

0.88

0.83

0.76

NDM1-1250

1

0.88

0.83

0.79

0.76


Outline and installation dimensions

NDM1-63、 125、1 60、250 Outline and Installation dimension of wiring in front of the board


NDM1-400、 630、 800、 1000 Outline and Installation dimension of wiring in front of the board


Accessories of circuit breakers

1. Internal accessory of circuit breakers

1.1 Shunt release

Rated control supply voltage of the shunt release: AC50Hz, 230V, 400; DC110V, 220V, 24V; When between 70%~110%, can break the circuit breaker reliably.

When rated control supply voltage of the shunt release is DC24V, the maximum length of copper wire should meet the following requirements

Rated control
supply voltage Uc(DC24V)/Conductor area

1.5mm²

2.5mm²

100%Uc
85%Uc

150m
100m

250m
160m


If the requirements of the above table are not met, it is recommended to design the shunt release control circuit using the following figure


1.2 Under-voltage release

When the power supply voltage drops to under-voltage release rated voltage of 70% to 35% of the range, the under-voltage release circuit breaker reliable break; when the supply voltage is below the rated voltage undervoltage release 35% , Under-voltage release to prevent the circuit breaker is closed; when the supply voltage is higher than 85% of the rated voltage of the under-voltage release, the under-voltage release ensures that the circuit breaker is closed. The undervoltage releases are rated at AC50Hz, 230V, 400V.

Special Note: The circuit breaker with undervoltage release, only in the under-voltage with rated voltage, which can open and close normally.


1.3 Pre-paid meter dedicated release

The rated operating voltage Ue of the pre-paid meter dedicated release is AC230/50Hz, it can worknormally in the range of (65% ~ 110%) Ue. When the Ctrl is cut off, the circuit breaker will delay 0.5s ~ 2s to be opening. Wiring diagram of pre-paid meter dedicated release


1.4 The rated value of auxiliary contacts and alarm contacts in Table 5

Classification

Conventional thermal current (Ith)

Rated current when

AC 400V Ie(AC-15)

Rated current when

DC 220V Ie(DC-13)

Auxiliary contact

3

0.4

0.15

Alarm contact

3

0.3

0.15


a. Auxiliary contact


b. Alarm contact

Alarm contacts don't act when the circuit breaker opens and closes normally, alarm contacts switch between normal opening and normal closing only after free tripping or fault tripping.


2. External Accessory for Circuit Breakers

2.1 Motor operating mechanism. The rated value and code are shown in Table 6.

Category/Model

NDM1-63. 125.160. 250

NDM1-400. 630. 800. 1000

Structure type

Electromagnet

Motor

AC voltage code

AC50Hz、230V、400

AC50Hz、230V、400

DC voltage code

DC110V、220V

DC110V、220V


NOTE: After the tripping of circuit-breaker with electric operating mechanism, the electric operating mechanism must make the circuit-breaker buckle again, then it can close.


Corresponding letters

Function name

Function corresponding to the model

a

Model features

NDM1 Molded Case

Circuit Breaker

b

Frame rated current code

63A、125A、160A、250A、

400A、630A、800A、

1000A

c

Breaking capacity characteristic
code

standard breaking type;

d

Operation mode code

No code for handle operation;

P for electric operation;

Z for turning handle operation

e

Pole

3-three poles;

4-four poles

f

Release name

2 Electromagnetic release;

3 Double release

g

Accessory

00 Without accessory
08 Alarm contact
10 Shunt release
20 Auxiliary contact
30 Undervoltage release
40 Shunt release, Auxiliary contact
50 Shunt release, Undervoltage release
60 Two sets of auxiliary contacts
70 Auxiliary contact, Undervoltage release
18 Shunt release, Alarm contact
28 Auxiliary contact, Alarm contact
38 Undervoltage release, Alarm contact
48 Shunt release, Auxiliary contact, Alarm contact
58 Shunt release, Undervoltage release, Alarm contact
68 Two sets of auxiliary contacts, Alarm contact
78 Auxiliary contact, Undervoltage release, Alarm contact
10Y Pre-paid meter dedicated release
40Y Pre-paid meter dedicated release, Auxiliary contact
50Y Pre-paid meter dedicated release, Auxiliary contact, Undervoltage release
18Y Pre-paid meter dedicated release, Alarm contact
48Y Pre-paid meter dedicated release, Auxiliary contact, Alarm contact
58Y Pre-paid meter dedicated release, Undervoltage release, Alarm contact

h

Application

No code for distribution;

2 for motor protection

i

Conventional products

No code;

T for transparent cover products

j

Amperage

10、16、20、25、32、63、80、100、125、160、180、200
、225、250、315、350、400、500、630、700、800、1000


Example: NDM1-63/ 33102 63A means NDM1-type molded case circuit breaker, frame rated current is 63A, breaking capacity is the standard type, handle operation, 3 poles, double release, with shuntrelease, for motor protection, rated current is 63A.

Selection, installation, use should be consistent with the product manual or the relevant national standards.

Note: N-pole type of 4P circuit breaker is divided into A-type, B-type, which is not specified defaults to Btype.
