The new M1-2000 Molded Case Circuit Breakers are modular, intelligent, miniaturized, easy to install, change concepts, modular intelligent controllers, with communication and metering functions, new modular manual mechanisms and new modular electric Mechanism, the core electric mechanism is the same frame mechanism that has passed hundreds of thousands of strict market assessments and practical applications. The contact system has no cross - section from the incoming end to the outgoing end, achieving better breaking and short-term withstand current and temperature The arc extinguishing chamber adopts high- density ladder grid and double arc extinguishing chamber control technology to ensure the reliability of current breaking.

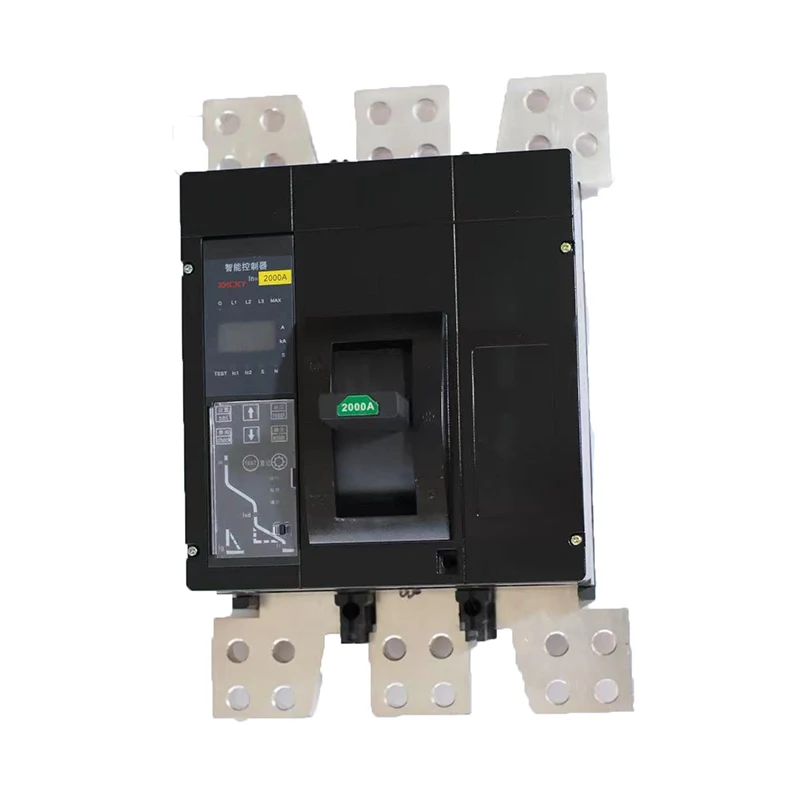

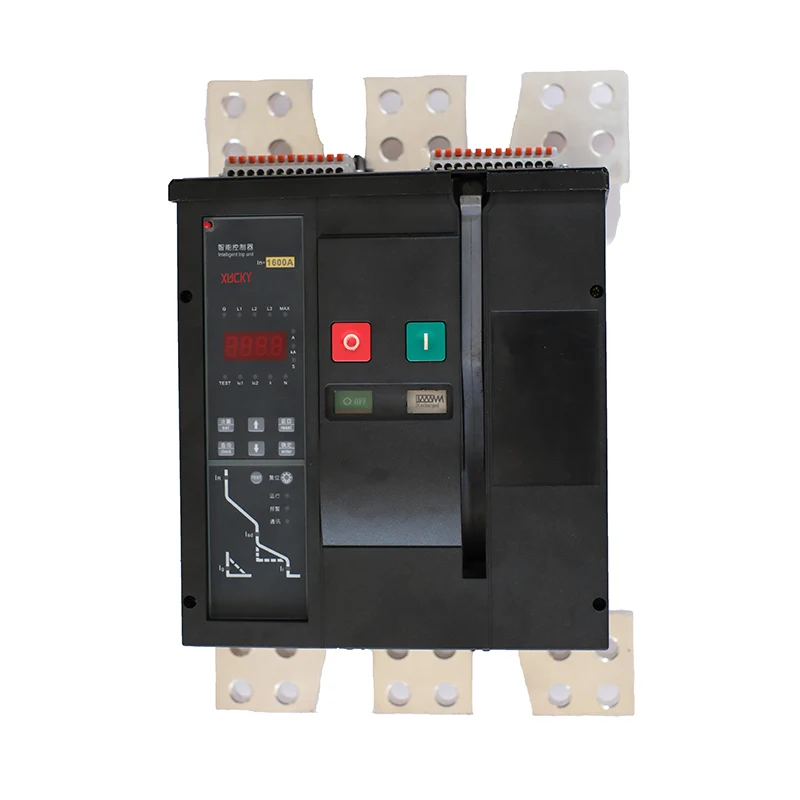

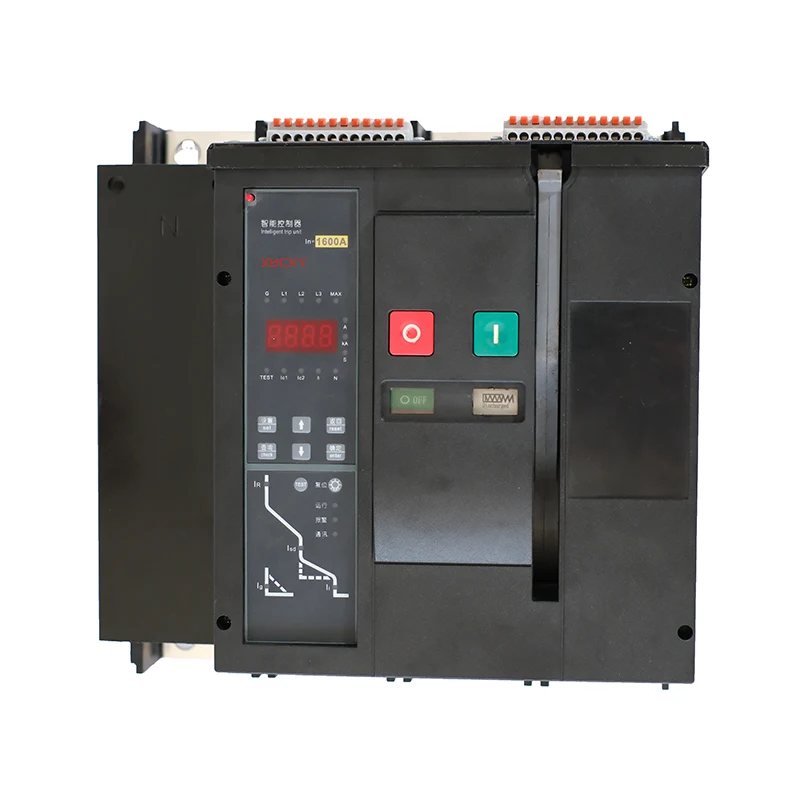

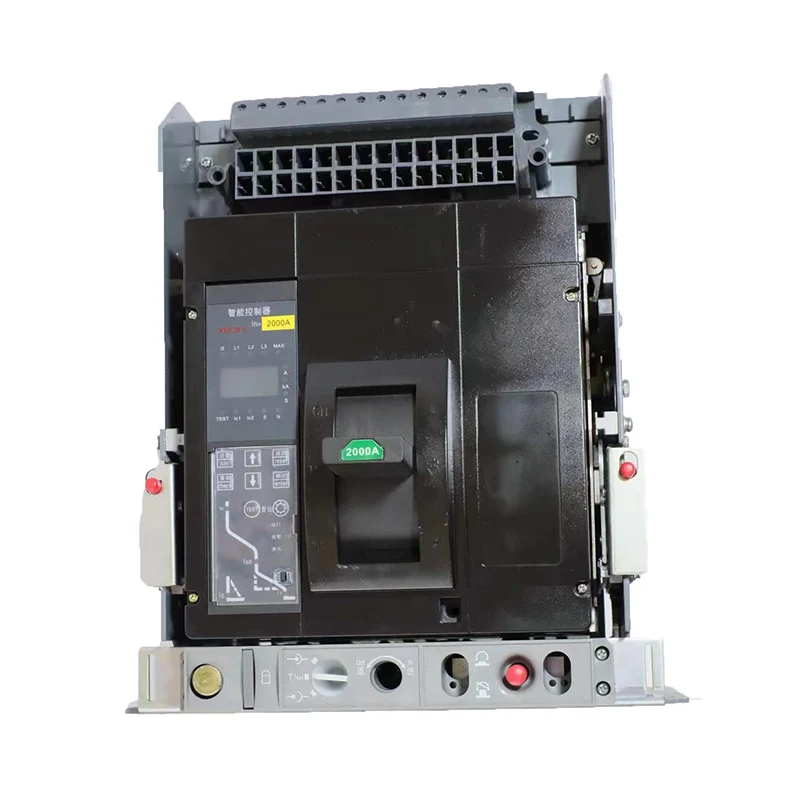

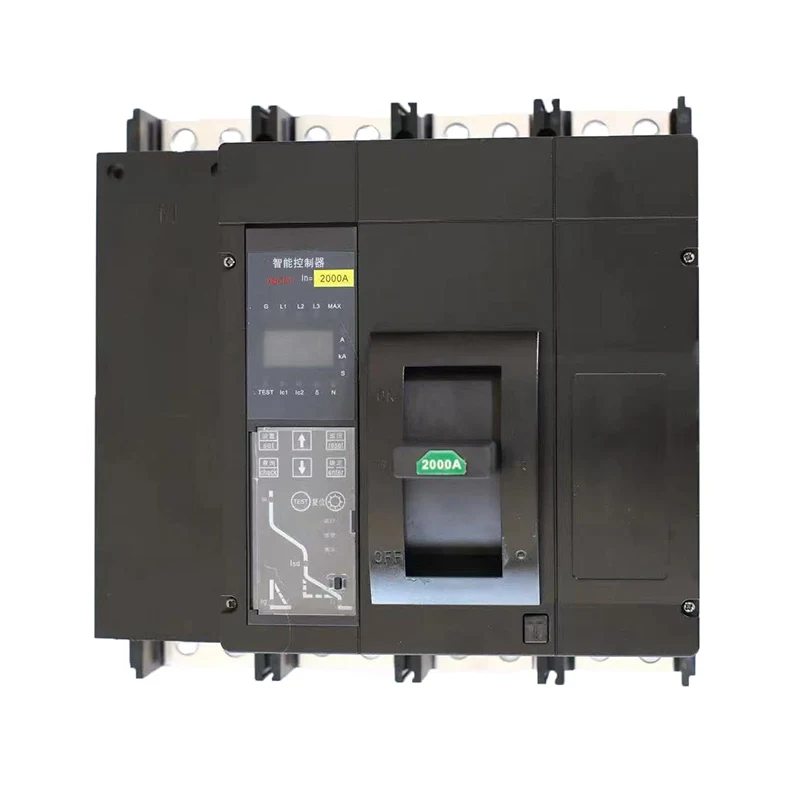

Switch installation method: fixed and drawer type. M1E- 2000A series Moulded case circuit breaker (hereinafter referred to as circuit breaker), rated insulation voltage is 1000V,suitable for AC50Hz/60Hz, rated working voltage AC380/400/4 15V, AC500V, AC660/690V, AC800V, rated working currentIn
800A, 1000A, 1250A, 1600A, 2000A circuits, it is used to distribute electric energy. In addition to overload long delay inverse time limit and short circuit shortDelay with fixed time limit, short circuit short delay inverse time limit, short circuit instantaneous,grounding, overload and alarm, alarm non-trip function, which can protect the line and power supplyIn addition to not being damaged, the equipment also has the ability to feed back the current, voltage, power, electric energy, frequency, etc. of the product to the host computer or other energy efficiency management systems.Information such as lifespan, opening and closing status, number of operations, etc. can be used to detect and monitor circuit breakers, reduce the operation and maintenance costs of the power grid, and provide information for the future.Energy efficiency systems provide the necessary data.
M1Z- 2000 series Moulded case circuit breaker (hereinafter referred to as circuit breaker), rated insulation voltage is 1200V, suitable for rated operationVoltage DC500V (2P series connection), DC600V (2P series connection), DC750V (3P series connection), DC 1000V (4P series connection), DC1200V (4PSeries), used to distribute electric energy in circuits with rated operating currents of 800A, 1000A，1250A，1500A， 1 600A, and 2000A.At the same time, it protects lines and power equipment from overload, short circuit, and undervoltage (with undervoltage release).
With isolation function, its corresponding symbol is:
FX-Comply with standards: IEC60947-2.
1) Ambient air temperature: -35C ~ +70°C (ETC products: -309C ~ +70°C); the average value over 24 hours does not exceed +35°C;
2) Storage environment: - 40°C to +75C;
3) Altitude: ≤2000m;
4) Atmospheric conditions: ambient air temperature is +40° C, relative humidity 95%;
5) Pollution level: Level 3;
6) Protection level: IP20;
7) Installation category: main circuit and undervoltage release: installation category II; auxiliary circuit and control circuit; installation category II;
Note: The tripping parameters of DAM1-2000 and DAM1Z- 2000 Moulded case circuit breakers are set according
to the ambient temperature of + 40°C. When the ambient temperature is between +409C and +70°C, the user It needs to be derated for use. For the derating factor, see "Product Temperature Change Derating Coefficient Table".
The controller provides 6 optional overload curve formulas .
1. Description of parameters displayed in the ammeter window
When the "%" light is on, the displayed value is the contact wear value.
When the "X 10" light is on, the smaller value is the number of opening and closing operations of the circuit breaker.
" δ", "%" and "L1/L2/L3" lights lightupat the same time, and the displayed value is the unbalance rate of the corresponding phase.
The "If" and "A/KA" lights light up at the same time, and the displayed value is the ground current.
"L1/L2/L3" and "A/KA" lights light up at the same time, and the displayed value is the corresponding phase current.
The "N" and "A/KA" lights light up at the same time, and the displayed value is the N- phase current.
The' "A/KA"light flashes to indicate KA, and stays on to indicate A.
2. Parameter description displayed in the voltmeter window
Any one of the lights "U1, U2, U3" and the "V" light are on at the same time, indicating the three-phase line voltage respectively.
Any one of the lights "U1, U2, U3" and the three lights "UN" and "V" are on at the same time, indicating the corresponding phase voltage
The "HZ" light lights up to indicate the frequency. If no voltage is connected, the default is 50Hz.
The "COS" light on indicates the power factor.
The "KW" light on indicates active power.
The "KW" light flashes to indicate active charging, and the unit is kilowatt-hours.
3. Self-diagnostic fault identification
When the "T" light on the control panel lights up, it means there is a self- diagnosis fault. Press the OK key to display the fault code.
If the fault is cleared, press the return key to clear the self- diagnostic fault“T" light and return to normal status; if there are multiple diagnostic faults, press the▲and▼keys to cycle through the fault codes. The fault code is as follows:
As shown on the controller panel, the controller has the following various states during operation;
1. Setting status: The "Setting" light is always on, and the setting values of various protection characteristics can be viewed or modified.
2. Query status: The "Query" light is always on, and historical fault information can be viewed.
3. Test status: The "test" light is always on, and the trip test can be performed.
4. Fault status: The "fault" light is always on, indicating the fault type, and the fault current and time are displayed in a loop.
5. Alarm status: "Alarm" light flashes, indicating that it is in the process of fault delay.
6. Storage status: The "storage" light flashes once, indicating that a data change has occurred.
7. Self-diagnosis status: "T" light is on, indicating that the controller has a self- diagnosis fault.
8. Communication status: Only H type has it. The "Tx, TR" lights flash, indicating that there is data transmission.
Operating the function,▲,▼, OK, return, and other keys on the controller panel can realize setting, query, and test functions. Press the function key to cycle through three states: setting, query, and test; pressthe▲and▼keys to select function items or increase or decrease parameter values; press the OK key to enter the function state or store the changed data; press the return key to return to the previous page. Level 1 operation. The various protection characteristic setting settings should ensure I.>I.>lg. and it is recommended that lLc1> ILc2. The operation steps are as follows:
Step 1: Press the function key until the "Settings" light flashes, and press the OK key again. At this time, the "Settings" light still flashes, and a certain protection category The light is on, indicating that it has entered the setting value setting state.
Step 2: Pressthe▲and▼keys to cycle through the original setting data of various setting values. If you want to modify a certain setting value, press the OK key,At this time, the "Set" light is always on. Use the▲and▼keys to adjust until the required value is reached. Press the OK key. The "Save" light will light up once, indicating that the modification has been saved.changed data. Press the return key to exit the modification of the setting value.
Step 3: Repeat step 2 until all setting values are modified. Press the return key to exit the setting function.
When modifying the setting values of various protection characteristics, please refer to the following two tables:
|
|
|
|
|
|
lc1 |
A/KA |
|
|
|
_ |
（K）:：tc： |
|
|
|
_____ _ |
A/KA |
Load monitoring l current setting value |
|
|
_ |
T(K):tuor_ |
|
|
|
8 |
_ |
Current unbalance setting value |
▁ |
|
_ |
Delay time setting value t, |
|
|
|
し |
_ |
Ground current setting value I |
|
|
C |
Grounding inverse time delay time setting value t, |
|
|
|
Grounding inverse time shear coefficient C, |
(S green light flashes) |
||
|
し |
A/KA |
Overload long delay current setting value I, |
|
|
S |
Overload long delay inverse time delay time setting value T(K):ta |
|
|
|
S |
A/KA |
Short circuit short delay inverse time current setting value l |
_ |
|
A/KA |
Short circuit short delay fixed time current setting value l,a |
(S red light flashes) |
|
|
_ |
Short circuit short delay fixed time delay time setting value t, |
|
|
|
|
A/KA |
Short circuit instantaneous current setting value I |
_ |
1) Wiring diagram of the main circuit of the product
Main circuit wiring diagram of AC products (M1 -2000,M1E-2000)
2) DC product (M1Z- 2000) main circuit wiring diagram .
3) Reference cross section of connecting wire
|
Rated current(A) |
800 |
1000 |
1250 |
1600 |
|
Copper bar size: width × thickness (mm) |
50×5 |
50×6 |
50×8 |
50×10 |
|
Number of copper bars |
2 |
2 |
2 |
2 |
|
Tightening torque of terminal screw M10 (N · m) |
|
|
20 |
|
M1- 1 600 type installation dimensions
M1- 1 600/2P installation dimensions
M1- 1 600/3P installation dimensions
M1- 1600/4P installation dimensions
M1- 2000 type installation dimensions
4) Product dimensions for rear panel wiring
a) Product dimensions of rear panel horizontal wiring (R1)
Note: Dimensional tolerances not noted are in accordance with GB/T 1804-c standard.
b) Product dimensions of vertical wiring (R2) behind the board
4P
Note: Dimensional tolerances not noted are in accordance with GB/T 1 804-C standard.
Drawer-type panel rear installation dimensions (electric)
Rear installation dimensions
Mounting hole dimensions for mounting on base plate
|
serial number |
Wiring copper bar thickness (mm) |
|
1 |
6.8 |
|
2 |
10.12 |
|
_ |
15 |
|
4 |
20 |
|
Note: The length of the hexagon socket head screws needs to be specified when ordering. |
|
Note: X-X, Y-Y in the figure are the centers of the three- pole circuit breaker; dimensional tolerances not noted are in accordance with the GB/T 1 804-C standard.
Safe distance
The minimum safe distance between the circuit breaker and the top, bottom, side and front panel when installed is shown in the figure below.
Address
