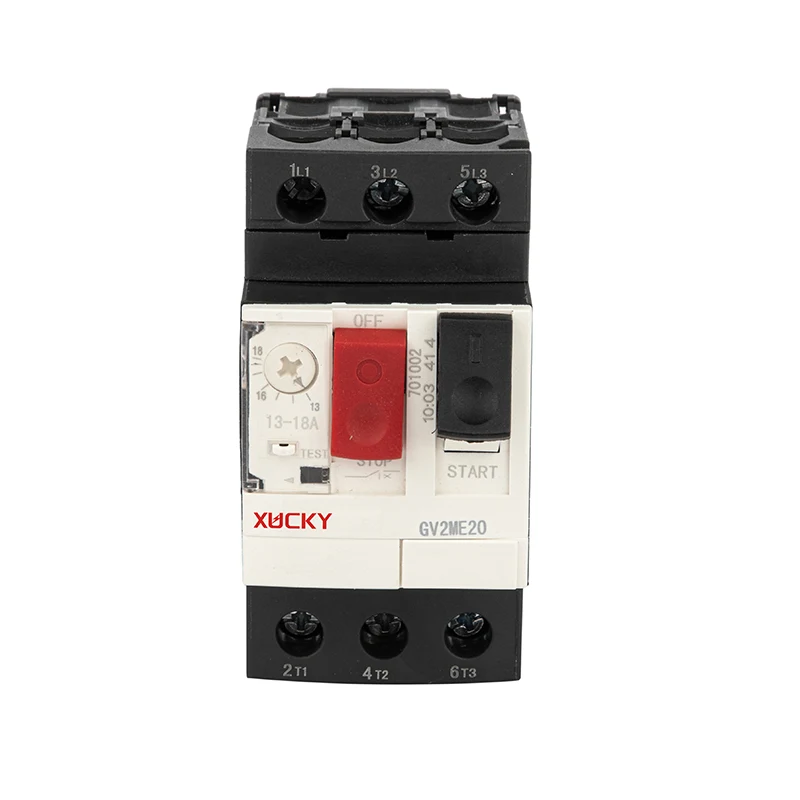

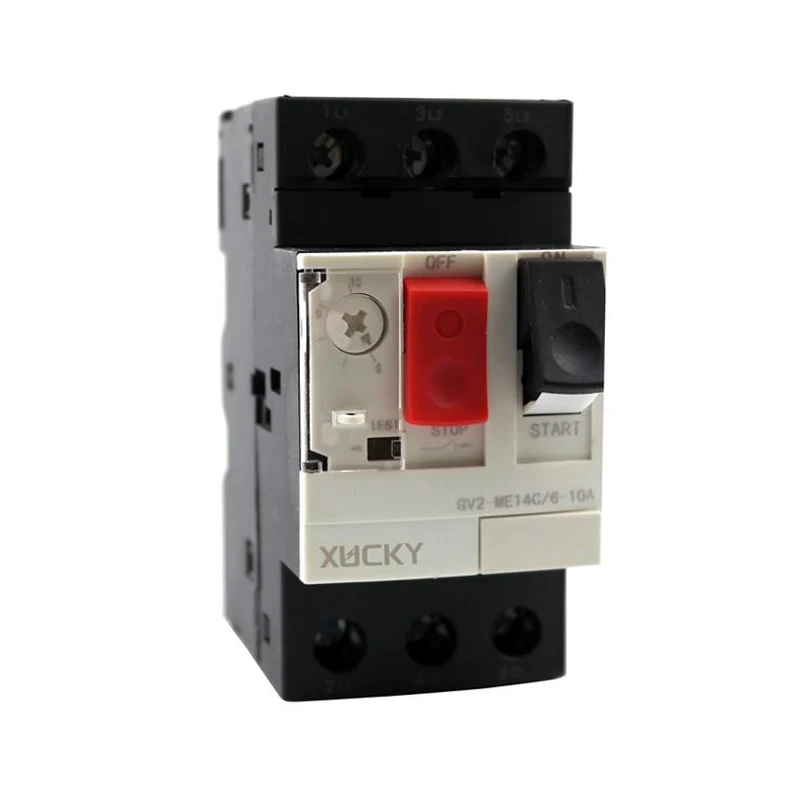

GV2-ME Motor Protection Circuit Breaker

China XUCKY Electric customized GV2-ME motor protection circuit breaker is mainly used for the overload and short circuit protection of the motor in AC 50/60Hz, up to 660V, 0.1-80A power circuit.

Send Inquiry

Product Description

Application

GV2-ME motor protection circuit breaker is mainly used for the overload and short circuit protection of the motor in AC 50/60Hz, up to 660V, 0.1-80A power circuit. And it is used as a full-voltage starter to start and cut off the motor, under the AC3 load or for the overload and short circuit protection of the circuit and power equipment in the power distribution network.

Specification of GV2-ME Motor Protection Circuit Breaker

Type	Standard power ratings of 3-phase motors 50/60Hz in category AC-3						Current setting range (A)
	220V	380V	415V	440V	500V	660V
	kW	kW	kW	kW	kW	kW
GV2-M01	-	-	-	-	-	-	0.1-0.16
GV2-M02	-	-	-	-	-	-	0.16-0.25
GV2-M03	-	-	-	-	-	-	0.25-0.4
GV2-M04	-	-	-	-	-	0.37	0.4-0.63
GV2-M05	-	-	-	0.37	0.37	0.55	0.63-1
GV2-M06	-	0.37	-	0.55	0.75	1.1	1-1.6
GV2-M07	0.37	0.75	0.75	1.1	1.1	1.5	1.6-2.5
GV2-M08	0.75	1.5	1.5	1.5	2.2	3	2.5-4
GV2-M10	1.1	2.2	2.2	3	3.7	4	4-6.3
GV2-M14	2.2	4	4	4	5.5	7.5	6-10
GV2-M20	4	7.5	9	9	9	11	13-18
GV2-M21	5.5	11	11	11	11	15	17-23
GV2-M22	5.5	11	11	11	15	18.5	20-25
GV2-M32	7.5	15	15	15	18.5	26	24-32
