DZ50N-63 Miniature Circuit Breaker

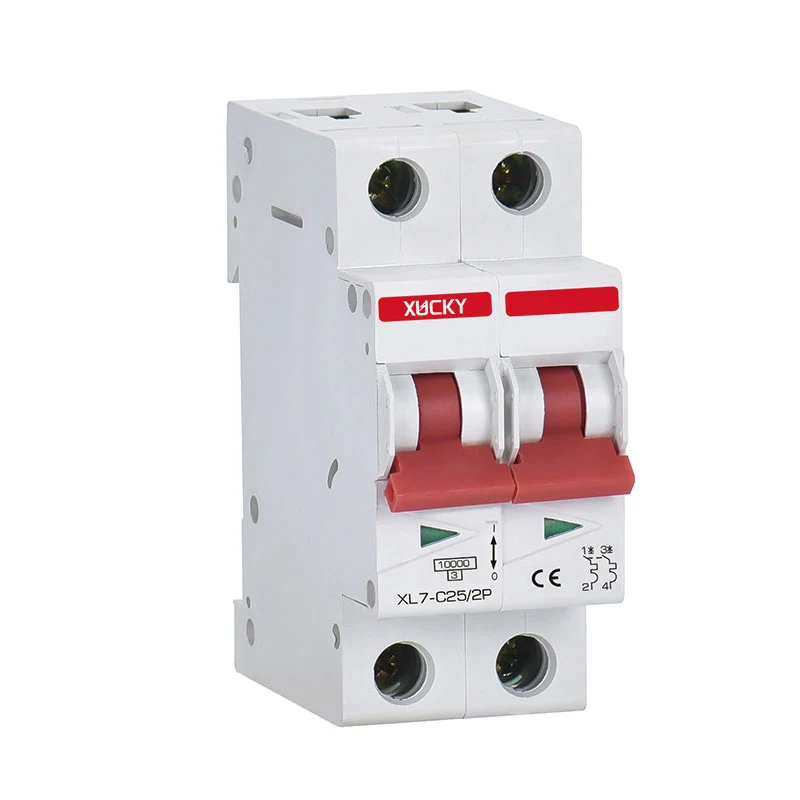

  • DZ50N-63 Miniature Circuit BreakerDZ50N-63 Miniature Circuit Breaker

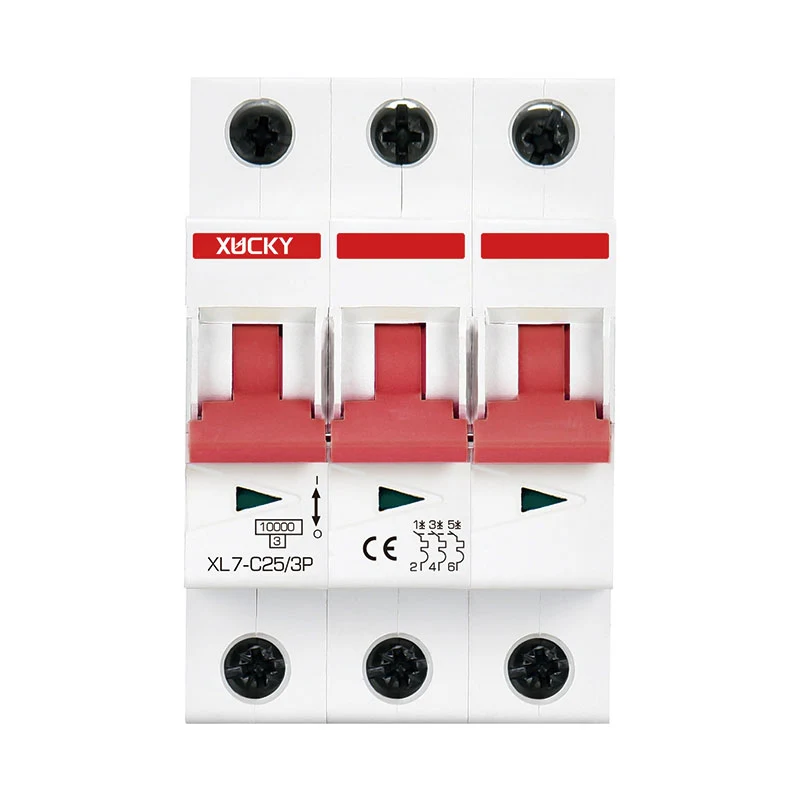

  • DZ50N-63 Miniature Circuit BreakerDZ50N-63 Miniature Circuit Breaker

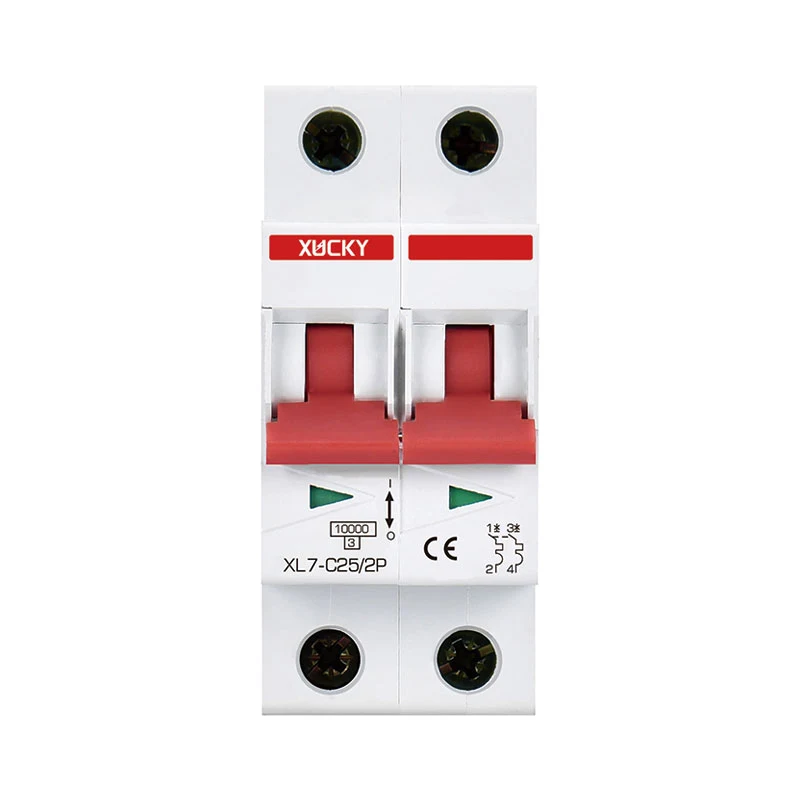

  • DZ50N-63 Miniature Circuit BreakerDZ50N-63 Miniature Circuit Breaker

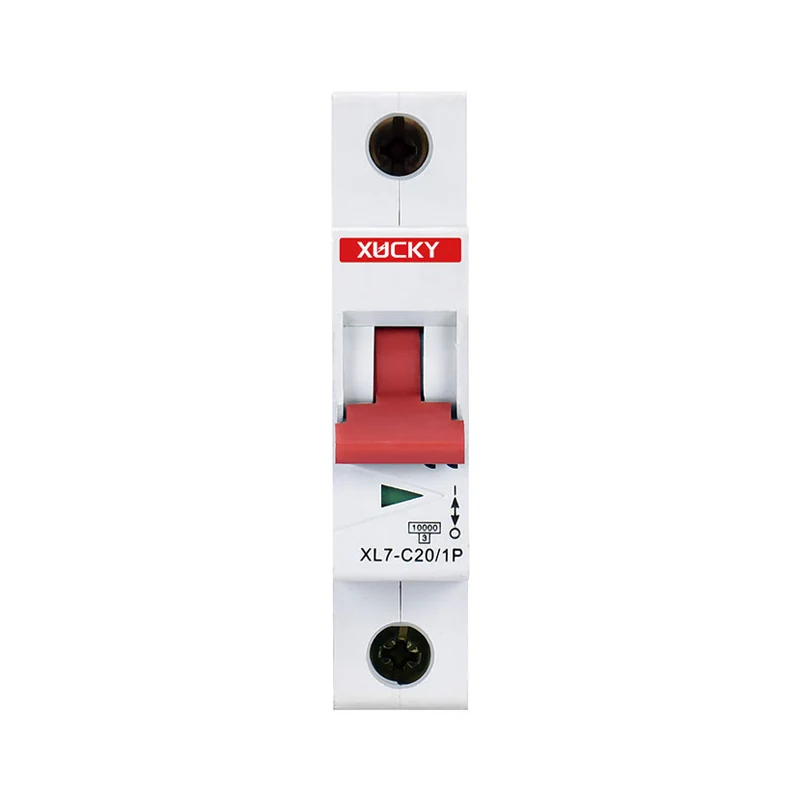

  • DZ50N-63 Miniature Circuit BreakerDZ50N-63 Miniature Circuit Breaker

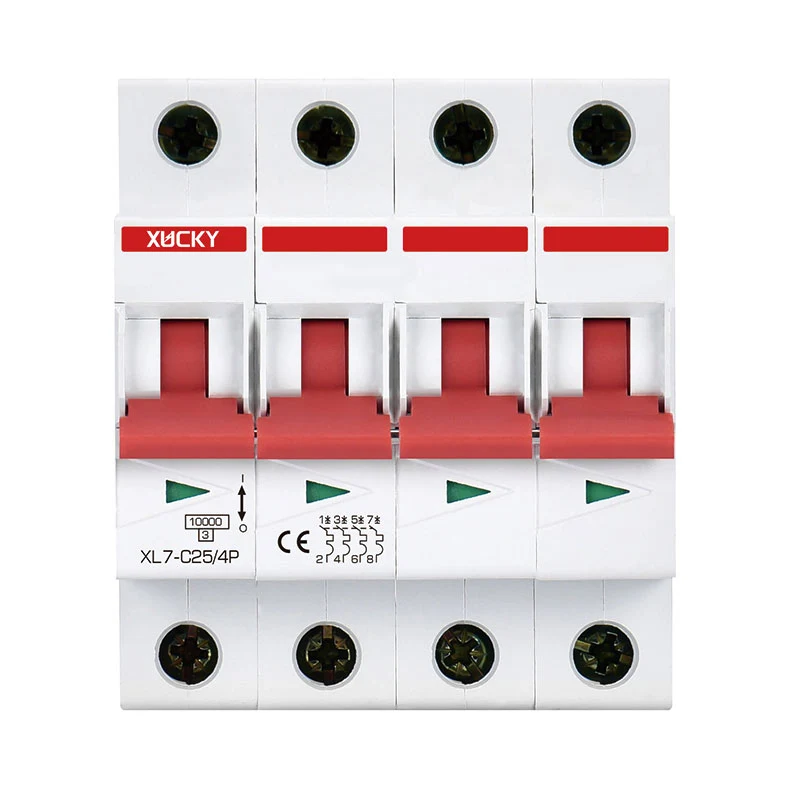

  • DZ50N-63 Miniature Circuit BreakerDZ50N-63 Miniature Circuit Breaker

DZ50N-63 Miniature Circuit Breaker

XUCKY Electric brand's DZ50N-63 Miniature Circuit Breaker (10KA Miniature Circuit Breaker), mainly used for protection distribution lines of AC 50Hz/60Hz, rated voltage of 110V, 230V(220V), 400V (380V), rated current of 1A, 3A, 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 60A and 63A, rated short-circuit breaking capacity is 10KA or below, and used for the lines of not frequent making, breaking and conversion, with overload, short circuit protection. At the same time, the 10KA MCB has a strong auxiliary function modules, such as auxiliary contacts, indication contacts with alarm, shunt release, undervoltage release remote trip control and other modules. DZ50N-63 Miniature Circuit Breaker (10KA MCB) complies with standards of GB10963.1, IEC60898-1 standard.

High quality customized products DZ50N-63 Miniature Circuit Breaker from China suppliers and manufacturers, XUCKY Electric has been specialized in Modular Electrical Terminal Equipment for many years. Our products have a good price advantage and cover most of the South America, Middle East, Africa, Southeast Asia markets. We look forward to becoming your long-term partner in China.


Main Technical Parameters

Rated Current

6A,10A,16A,25A,32A,40A,50A,63A

Poles

1P,2P,3P,4P

Rated Voltage Ue

230V/400V

Rated Impulse Withstand Voltage(1.2/50)Uimp

6kV

Dielectric Test Voltage At And Ind . Freq . For 1min

2kV

Protection Class

IP20

Thermo - Magnetic Release Characteristic

B-Curve (3-5In),C-Curve (5-10In),D-Curve (10-14In)

Electrical Life

2000

Mechanical Life

10000

Reference Temperature For Setting Of Thermal Element

35℃

Ambient Temperature

-5~+40℃

Terminal Connection Type

Phillips Screws

Adapter Cable

6-63A 1-25mm² 16-3AWG

Tightening Torque

3.0N.M

Combination With Accessories Auxillary Contact

Auxillary Contact

Yes

Alarm Contact

Yes

Shunt Release

Yes

Under Voltage Release

Yes


Tripping Characteristic Curve -- B C D Type


Temperature compensation

When the ambient temperature is not a benchmark of 30 degrees , the reference correction factor is as folows.

Ambient Temperature

-20℃

-10℃

0℃

10℃

20℃

30℃

40℃

50℃

60℃

Current Correction Coefficient

1.25

1.2

1.15

1.10

1.05

1.00

0.95

0.90

0.85


Connection

Rated Current

Minimum Adapter Copper Wire

6A

1 MM² / 17AWG

10A

1.5 MM² / 16AWG

16A

1.5 MM² / 16AWG

25A

2.5 MM² / 13AWG

32A

4 MM² / 11AWG



40A

6 MM² / 10AWG

50A

10 MM² / 7AWG

63A

10 MM² / 7AWG


Mounting Method

Th35-7.5 type steel mounting rail is used for installation.
